CL.0/34N-F.C.

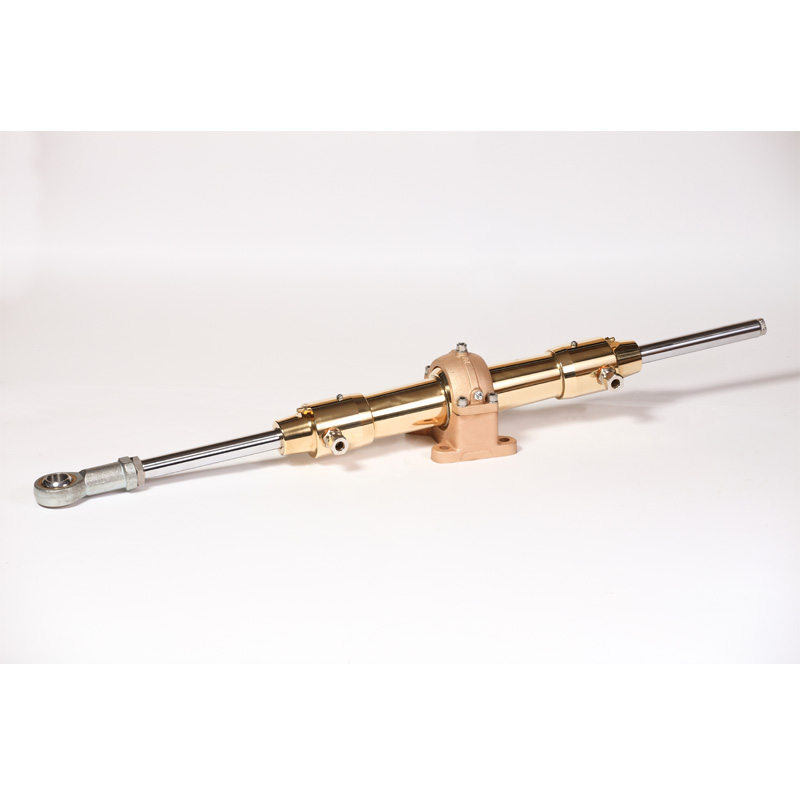

Brass inboard hydraulic cylinder with central support, bronze support and chromium plated stainless steel shaft
The hydraulic inboard cylinder type CL.0-34N-FC is part of the brass series with central fixing.
The cylinder tube is made of brass, a material which has higher resistance to pressure than aluminium.
To facilitate the bleeding of air, inclined bleed screws are installed on top of the cylinder heads.
The piston rod is made of stainless steel, chromed and rectified; the chromium plating in a protected environment guaranties a high quality plating, and an excellent protection against the marine corrosion, combined with a very smooth surface guaranties a long endurance of the seals.
The chromium helps to eliminate at least 30% of the friction caused by the use of seals and its hardness protects the piston rod from accidental scratches which could damage the seals.
The support is made of bronze.
MAIN CHARACTERISTICS
Volume: 339cc
Torque: 217Kgm at 35° of the rudder (with working pressure)
Pressure: 100Bar
Force: 1472Kg (with working pressure)
Stroke: 230mm
Tiller arm radius: 200mm
Piston rod: Diam. 25mm
Cylinder tube: 60mm / 50mm
Ball joint: 18mm
Standard fittings: 3/8″G or 15mm
