CL.0/200N

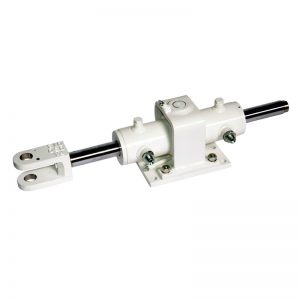

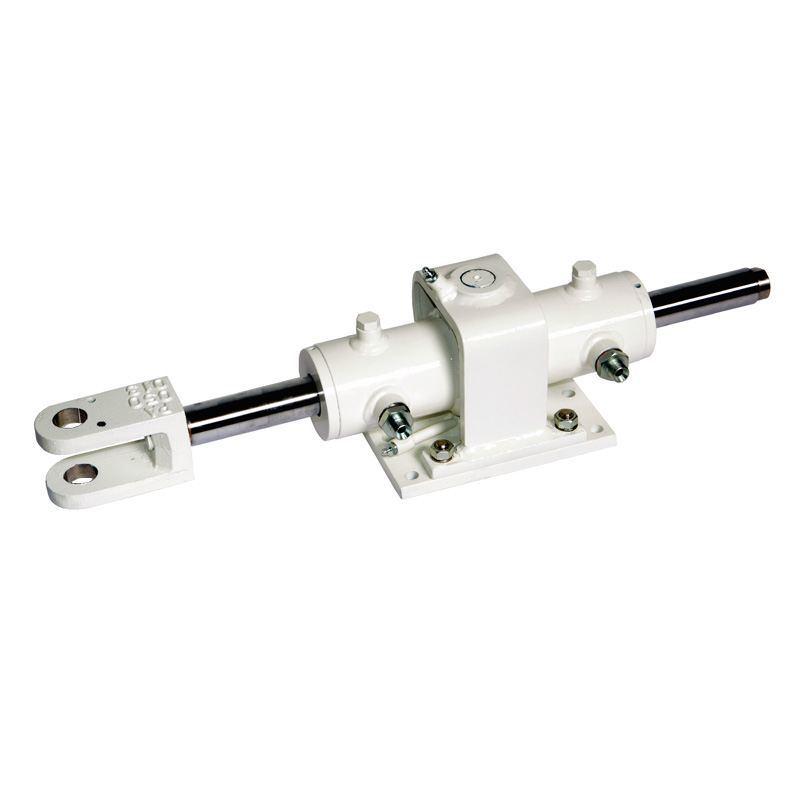

Inboard hydraulic cylinder with central support and chromium plated steel shaft

SKU: 8130
Share:

Hydraulic Cylinder with chromed steel piston rod and steel painted cylinder tube.
This type of cylinder is very strong and particularly recommended for working boats.
CHARACTERISTICS
Volume: 2136cc
Torque: 1382Kgm at 35° of the rudder (with working pressure)
Pressure: Max. 100Bar
Force: 6680Kg (with working pressure)
Stroke: 320mm
Tiller arm radius: 280 mm
Piston rod: Diam. 60mm
Cylinder tube: 110/130
Fork hole (for pin): 50mm
Threading: 3/4”G
Standard fittings: 3/4″G or 22mm

DOWNLOAD PDF FILE
